Chart that shows both checkbox values

Hi all, I have a field that is a checkbox that indicates whether the item is Active vs Inactive.

Active = checked

Inactive = unchecked

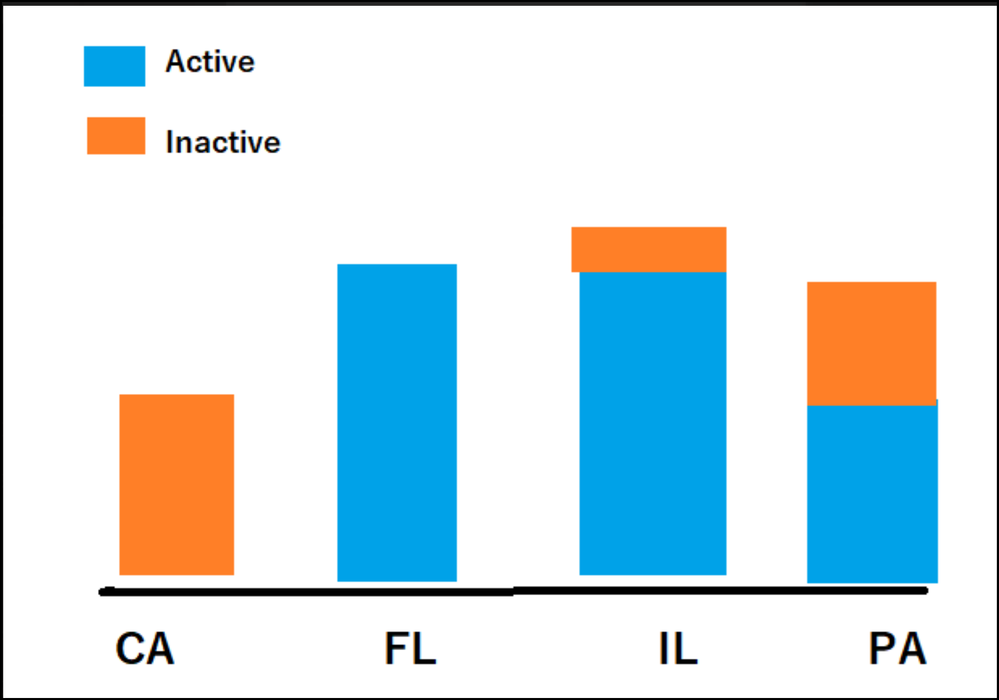

I would like a bar chart that looks something like the image below, but am having trouble getting it to work. The checkbox is called Active? Any help you can give is great!



------------------------------
Angela Rackley
------------------------------

1 Reply

  • Your best bet is to make 2 new fields specific for reporting where you convert active/inactive to a numeric counter of 1 or 0.

    So think like this:

    Formula 1 - Active Counter: If( [Active],1,0)

    Formula 2 - Inactive Counter: if( not [Active],1,0)

    Then you can make a stacked bar chart where you place both of those counter fields as your Y Axis values and make the state your X.

    The general idea is that checkboxes don't have a numeric quality to them, so you need to split it out to actually create the numeric equivalent of active/inactive for the report to count.



    ------------------------------
    Chayce Duncan
    ------------------------------
