Need help mapping 2 fields during form filling

Hi

I have 2 tables.

1. Project
2. Sub Projects - This is related to 1 in one to many relationship

For e.g. a project could be "Product". A sub-project could be "Product Harmonization", etc


Now I have a 3rd table called Action Item.

While creating an action item, I want the user to choose a Project, and then choose a sub-project which only belongs to that specific project. How do I do that?


I have mapped Project -> Action Items and it allows me to choose a project
I have mapped Sub-Project -> Action Items and it allows me to choose all sub projects.


Problem is that one project has a lot of sub projects, i only want dropdown to display the sub projects belonging to that Project.


Thanks
Ask about Quickbase functionality
  • MCFNeil's avatar
    MCFNeil
    Qrew Captain
    8 years ago
    You will want to see the [Related Sub Project] field to be conditional.

    On the Action Items table, find the reference field from the Sub Projects to Action Items.
    its most likely called [Related Sub Project].

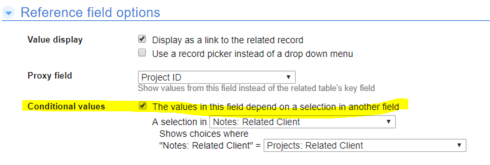

    When you edit the field properties, you will see a checkbox


    Use that checkbox, and then in your case select from the dropdown "Related Project"
    In my image it has [Related Client]

    Then you will only see the sub projects, connected to that master project.
  • ChrisChris's avatar
    ChrisChris
    Qrew Assistant Captain
    8 years ago

    Projects would be parent to sub-projects.

    Project and Sub-Projects both would be parents to Action Items. It is in the Action Items record where you would select the project, then the dependent list of Sub-Projects.

    In the Action Items table, go to the properties for the Related Sub-Items foreign key field. Go to the Reference Field Options section: Conditional Values.

    Check the box, "The values in this field depend on selections in another field".

    Two selection lists will open.

    Match "Action Items: Related Project" with "Sub-Projects: Related Project"

    Save the field settings.

    In the Action Items form, you will have dependent selection lists between Project and Sub-Project.

    In the Sub-Projects table, when you enter Sub-Projects, you will select the Project it goes with. This is what forms the relationships between Project and Sub-Projects.

    Let us know how it goes.
