Table-to-Table Relationship

Hi,

I want to create a new relationship between two tabs to look up two fields.
The relationship setting is done, but the value didn't pick up from the other tab.
I don't know how to fix it.

If any other info needed, I could provide.

Thanks

Echo

------------------------------
JUANRU AI
------------------------------
Relationships

4 Replies

Sort By
  • DonLarson's avatar
    DonLarson
    Qrew Commander
    5 years ago
    Juanru,

    To look up a field from a parent table, you have to edit the relationship.

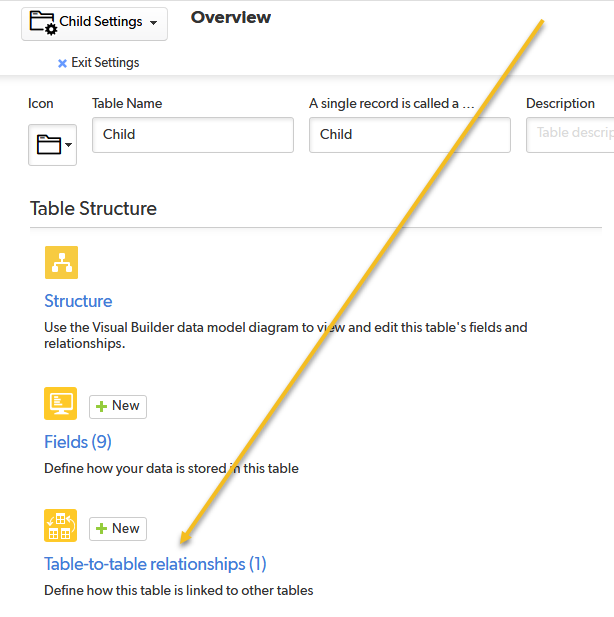

    From either the Parent or Child table, Click the settings Icon

    Then click Table to Table relationships

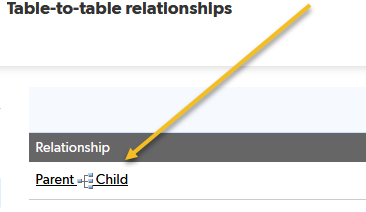

    This will show you all the relationships for the table.  Click on the on that you want to pass data from the Parent to the Child

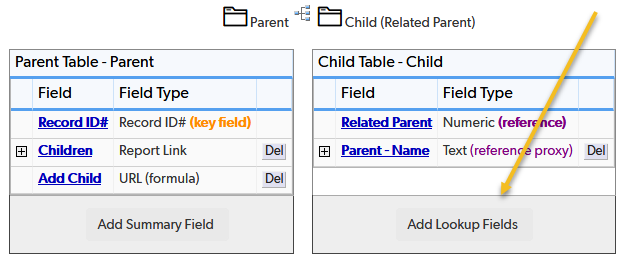

    Now click the button Add Lookup Fields

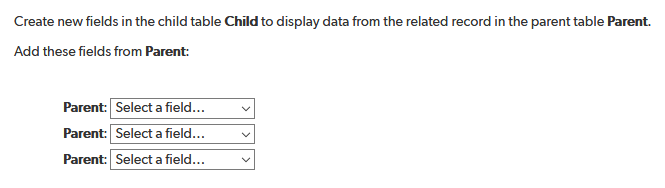

    Then you select the fields from the Parent that the Child will inherit.


    Now you can use that information in the forms and workflows of your Child Table.


    ------------------------------
    Don Larson
    Paasporter
    Westlake OH
    ------------------------------
    • BruceKasen's avatar
      BruceKasen
      Qrew Member
      5 years ago
      Don, you helped me last week with a phone call.  Thank you much.app

      Now, I also have a similar problem with the T-T relationship.  I followed your instructions to Juanru, but it didn't link up.  Would you have time for a short call you proxy into my app and help me?

      Bruce
      202-885-2881

      ------------------------------
      Bruce Kasen
      ------------------------------
      • BruceKasen's avatar
        BruceKasen
        Qrew Member
        5 years ago
        Don, my phone number is 303-885-2881.

        ------------------------------
        Bruce Kasen
        ------------------------------
  • BrandonDrake's avatar
    BrandonDrake
    Qrew Cadet
    5 years ago
    Hello,

    If you created the relationship already, you may just need to create the lookup fields for the relationship.  If you did not select the fields you wanted to see in the child table when you created the relationship, you need to go into the table settings.  To do this, navigate to the one of the tables you just created in the new relationship and then click the settings gear in the upper left hand of the screen under the list of tables.  From here, select the Table-to-Table Relationships and select the relationship you want to create the fields in.  The right hand side will be the child table, and you can create your lookup fields by clicking Add Lookup field and then finding the field you want to add.

    ------------------------------
    Brandon Drake
    JHI Group
    Monroeville OH
    ------------------------------
