Forum Discussion

RhondaParriet's avatar
RhondaParriet
Qrew Member
6 years ago

4 weekly inputs = 1 monthly amount

I have weekly inputs on a table for 8 different fields. I need to be able to sum each field each month and use that in other formulas. This will be ongoing  so I need the summation to be by month & year
example
Date Field 1 Field 2 Field 3 Field 4 Field 5 Field 6 Field 7 Field 8 Machine
11/1/2019 15.73 228.43 145.8 0 0   0 3396 Machine 1
11/7/2019 0 21.45 4.48 0 0   0 2214 Machine 1
11/13/2019 0 27.22 0 0 0   0 4452 Machine 1
11/19/2019 0 179.18 163.13 0 0   0 4572 Machine 1
November 15.73 456.28 313.41 0 0 0 0 14634
11/1/2019 15.83 293.32 147.86 0 0   0 3396 Machine 2
11/7/2019 0 29.95 23.75 0 0   0 2214 Machine 2
11/13/2019 0 45.26 32.95 0 0   0 4452 Machine 2
11/19/2019 0 227.35 177.86 0 0   0 4572 Machine 2
November 15.83 595.88 382.42 0 0 0 0 14634
11/1/2019 30.13 235.97 0 0 0   0 3396 Machine 3
11/7/2019 0 23.13 0 0 0   0 2214 Machine 3
11/13/2019 0 32.6 0 0 0   0 4452 Machine 3
11/19/2019 0 191.66 0 0 0   0 4572 Machine 3
November 30.13 483.36 0 0 0 0 0 14634

This is a simplified version of what i need but there will be 52 inputs for each field: 8 fields/ month
all of this will be different data for 1000+ machines.

------------------------------
Rhonda Parriet
------------------------------
Relationships
reports and charts
Statistics
  • DonLarson's avatar
    DonLarson
    Qrew Elite
    6 years ago
    Rhonda,

    The simplest way to summarize in Quick Base is from a child table to a parent table.   How is the data above related to other business objects?

    Here is one potential architecture

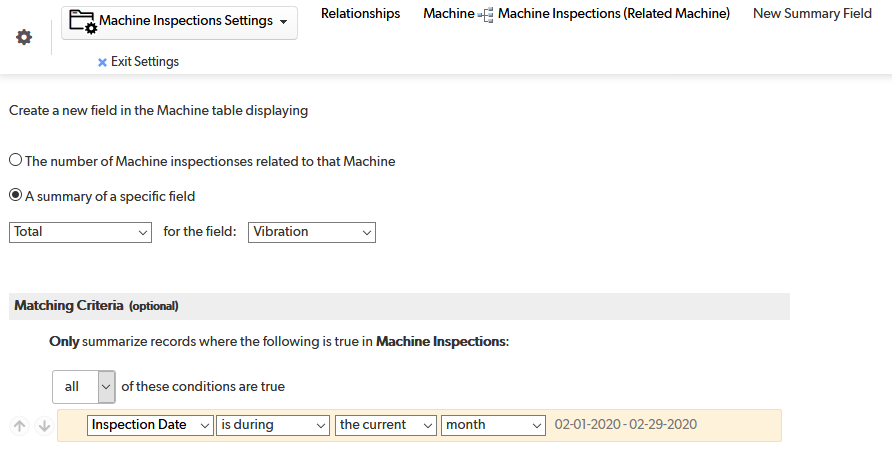

    Now you can create a Summary Field in the Machine Table

    Here is an example where we are going to count the number of vibration incidents



    You build out the rest of the information you need the same way for the other data fields in your Machine Inspection table.


    ------------------------------
    Don Larson
    Paasporter
    Westlake OH
    ------------------------------
    • RhondaParriet's avatar
      RhondaParriet
      Qrew Member
      6 years ago
      The fields need to be summed based on the month.  Each of these "summed" fields are used in calculations to create a stacked bar chart showing values month over month for a specific machine.
      I have one table with machines
      ---fields are department, machine
      one table with the fields that are calculated by month.
      Fields include machine, month, year, and the several formula fields
      ex total breakdown/minutes ran
      total quality / minutes ran
      stop/minutes ran
      The three above fields added together to make another field
      In total there are 24 formula fields based on the input fields.
      A third table will have these weekly inputs.
      These fields are date (week-ending), machine, and the input fields
      Breakdown, stoppage, quality, setup, tool, minutes ran

      ------------------------------
      Rhonda Parriet
      ------------------------------
      • AdamKeever1's avatar
        AdamKeever1
        Qrew Commander
        6 years ago
        Add a formula rich text field and create a formula to combine the date and machine like this:
        ToText(Year([Date]))&ToText(Month([Date]))&" - "&[Machine]​


        Then you can graph on the combination of the year/month and machine (these are unique):

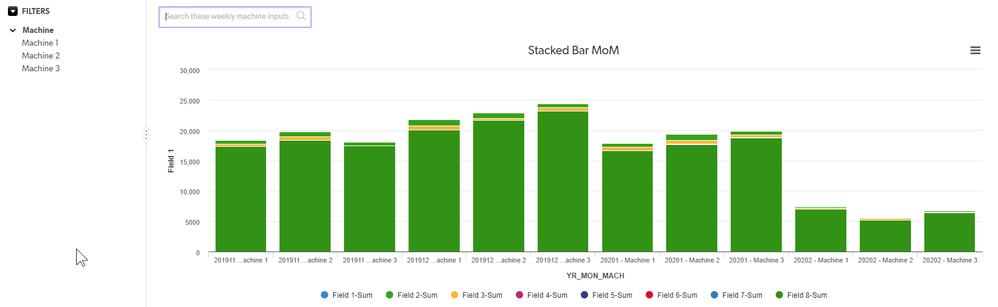

        Here is what the graph looks like with some additional data added:

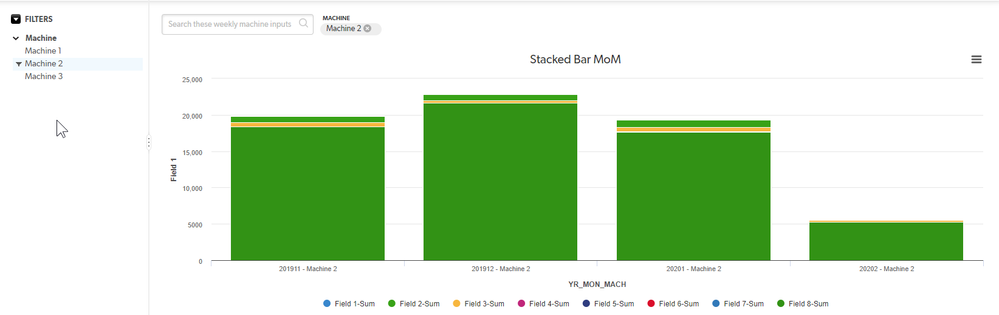

        You can filter by machine:

        You can also set a report filter to <ask user> for the machine or add the date to the dynamic filters list and select specific time periods. Month has to handled this way since charts order either ascending or descending so using the text for the month, such as November, would disorder the data in a chart since you cannot manually select the order. Also as you add data year over year, the data for multiple years of November would be charted in the same bar.




        ------------------------------
        Adam Keever
        ------------------------------
